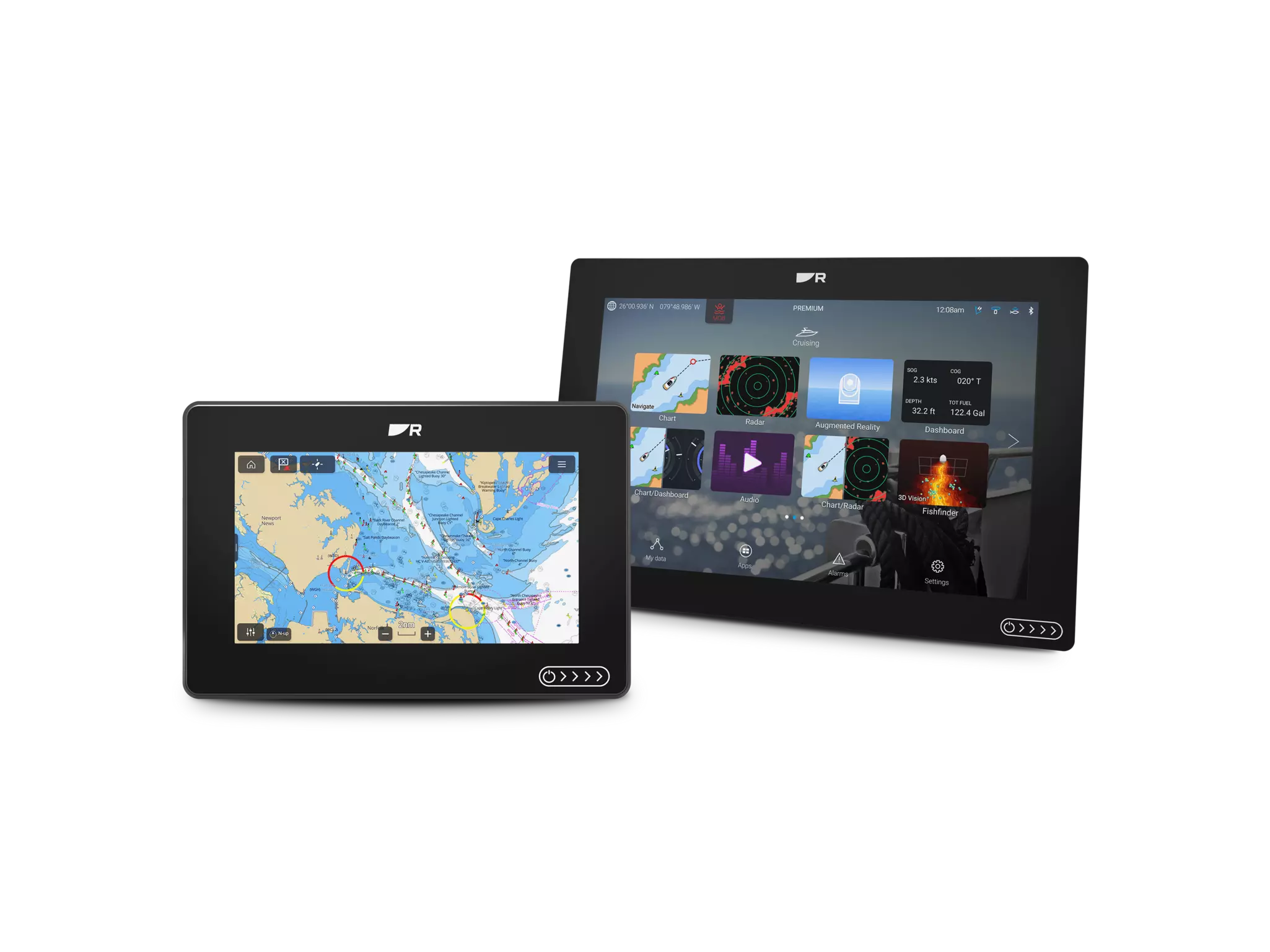

Axiom 2 | 12" Display | RealVision 3D Sonar | Western Europe
OEM: E70725-00-WEU
Main
Where to Buy
No affiliate links available
Check back later for purchasing options
Search at Retailers
Searching for: "Raymarine E70725-00-WEU"
Related Products
No related products linked yet.
Product Details (46)
Dimensions (Trunnion mounted)
Axiom 2 7" Width: 250.4 mm (9.86 in), Height: 162.5 mm (6.4 in), Depth including cables: 218 mm (8.58 in)Axiom 2 9" Width: 265.03 mm (10.43 in), Height: 187.81 mm (7.39 in), Depth including cables: 178 mm (7.01 in)Axiom 2 12" Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in)
Dimensions (Surface/Flush mounted)
Axiom 2 7" Width: 201.1 mm (7.92 in), Height: 133 mm (5.24 in), Depth including cables: 218 mm (8.58 in)Axiom 2 9" Width: 244.08 mm (9.64 in), Height: 157.78 mm (6.21 in), Depth including cables: 178 mm (7.01 in)Axiom 2 12" Width: 314 mm (12.36 in), Height: 226.72 mm (8.93 in), Depth including cables: 178 mm (7.01 in)
Accessory connection
USB Micro B
Ethernet connection
RayNet (10 / 100 / 1000 Mbit/sec Ethernet)
External storage
MicroSDXC card slot x 1
NMEA 2000 connection
DeviceNet (male connector built into power cable)
Wireless connections
Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
Internal storage
64 GB
Transducer connection
25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers
Operating temperature
-25°C to +55°C (-13°F to 131°F)
Storage temperature
-30°C to +70°C (-22°F to 158°F)
Relative humidity
Up to 93% @ 40°C (104°F)
Waterproof rating
IPx6, IPx7
Power consumption
Axiom+ 7: 9.84 WAxiom+ 9: 11.98 WAxiom+ 12: 18.96 W
Operating voltage range
8 V dc to 16 V dc
Fuse rating
7 A
Nominal supply voltage
12 V dc
LEN (NMEA 2000 Load Equivalency Number)
1
Resolution
Axiom 2 7: WSVGA 1024 x 600Axiom 2 9: Widescreen HD 1280 x 720Axiom 2 12: WXGA 1280 x 800
Display Brightness
Axiom 2 7: 1800 nits / 1800 cd/m2Axiom 2 9: 1500 nits / 1500 cd/m2Axiom 2 12: 1800 nits / 1800 cd/m2
Protective coating
HydroToughTMOleophobic
LCD Type
IPS (In-Plane Switching)
Position Accuracy
Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time
Geodetic Datum
WGS-84 (alternatives can be selected on the MFD)
Satellite Differential Type (SBAS)
WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)
Channels
Track up to 28 satellites simultaneously
Antenna
Internal - Ceramic chip mounted near top of unit
GNSS compatibility
GPS, GLONASS, Beidou
Almanac Update
Automatic
Signal Acquisition
Automatic
Receiver IC Sensitivity
165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start)
Operating frequency
1574 MHz to 1605 MHz
Refresh rate
10 Hz (10 times per second)
Time to first fix from cold start
< 2 minutes
CHIRP Sonar Channels
RealVision 3D: (70 W / 350 kHz )SideVision: (70 W / 350 kHz )DownVision: (35 W / 350 kHz )CHIRP High: (100 W / 200 kHz )
Conventional Sonar Channels
50/200 kHz (600 W) Note: A 600 Watt conventional sonar transducer and adapter cable is required
Waypoints
Up to 10,000 waypoints can be stored in up to 200 waypoint groups
Routes
Up to 250 routes can be stored, each route can contain up to 500 waypoints. The route capacity limit is subject to your chartplotter’s 10,000 waypoint limit (for example, 20 routes can be stored each containing 500 waypoints).
Automatic Route Planning
Yes with Navionics charts or via the Orca mobile app
Tracks
Up to 15 tracks can be stored, each track can contain up to 10,000 track points.
Compatible Charts
Raymarine LightHouse ChartsNavionicsC-MAPFlorida Marine TracksCMOR MappingStandard MappingStrikeLinesImray Digital ChartsS-63 encrypted charts
_variant_image_url
https://d73v3rdaoqh96.cloudfront.net/image/308061165312/image_gqir398gs52233td8qj7n9902v/-FWEBP-S576
Variant - screenize
12"
Variant - preloadedlighthousechart
Western Europe
Variant - sonar_included
RealVision 3D Sonar
Variant - transom_transducer_included
No Transducer
