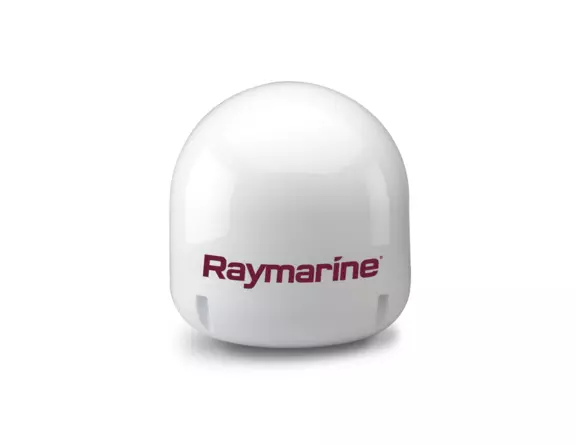

60STV
OEM: E70456
View on Raymarine ↗
Main
Where to Buy
Search at Retailers
Searching for: "Raymarine E70456"
Related Products
No related products linked yet.
Product Details (30)
Radome Height
72cm / 28.3”
Radome Diameter
70cm / 27.5”
Reflector Diameter
60cm / 23.6”
Weight
1.2kg / 2.6lbs
Operating Temp. Range
-25°C to +55°C / -13°F to +131°F
Storage Temp. Range
-40°C to +80°C / -40°F to +176°F
Water Ingress
IPX6
Approvals
CE / FCC
Warranty
3 year parts and 2 year labor
Reception Frequency
Ku-Band (10.7~12.75GHz)
Polarization
Circular and Linear
Minimum EIRP
46dBW
Azimuth Range
680º
Elevation Range
+5º to +90º
Ship’s Motion
Roll ±25º, Pitch ±15º
Roll & Pitch Response Rate
45º / sec
Turning Rate
45º / sec
RF Output
Quad output
Dimensions (WxDxH)
17.8 x 21.7 x 5.4 cm / 7” x 8.5” x 2.1”
Display
2 line 20 character VFD module
GPS Interface
Built-in (NMEA 0183 GPS)
Power Requirement
9.0~30.0V DC
Power Consumption
Typ. 30W, Max. 50W
11.250 GHz
(Polarization: Dual Circular) – Area: North America, Russia
10.500 GHz
(Polarization: Dual Circular) – Area: Latin America
10.750 GHz
(Polarization: Dual Circular) – Area: China
10.678 GHz
(Polarization: Single Circular) – Area: Japan
11.300 GHz
(Polarization: Dual Circular) – Area: South East Asia
10.700 GHz
(Polarization: Dual Circular) – Area: Australia
Universal Low: 9.75 GHz High: 10.6 GHz
(Polarization: Quad Linear) – Area: Europe, Middle East, Africa, some Asia countries
