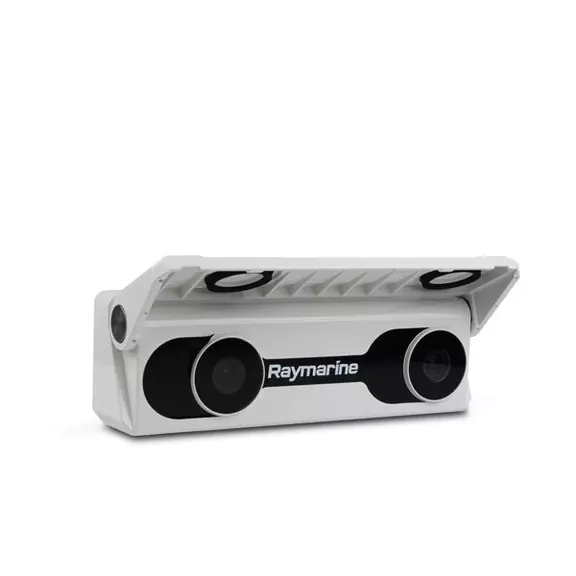

DockSense Control Systems
Main
Where to Buy
Search at Retailers
Searching for: "Raymarine DockSense Control Systems"
Related Products
No related products linked yet.
Product Details (45)
SeaTalkng
x1, for connection to Raymarine Multifunction display (MFD), via SeaTalkng backbone.
DeviceNet
x1, for connection to DockSense Processor Module, via DeviceNet backbone.
Dimensions
Width: 352.5 mm (13.9 in), Height: 235.0 mm (9.3 in), Height (incl connectors): 248.1 mm (9.8 in), Depth: 109.9 mm (4.3 in)
Geodetic Datum
WGS-84
Satellite Differential Type (SBAS)
WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS ready (Japan)
Relative humidity
up to 93% @ 40 °C (104 °F)
Channels
Simultaneously track up to 28 satellites.
Waterproof rating
IPx6
Antenna
Internal
GNSS (GPS) satellite system compatibility
GPS, GLONASS, Galileo ready, Beidou ready
Standards
EN 60945:2002 (Europe, Australia New Zealand), EMC Directive 2014/30/EU, ICES-003 (Canada), CFR47 Part 15 (USA), Australia and New Zealand: C-Tick, Compliance Level 2
Sensitivity
Cold start = -147 dBm, Re-acquisition = -160 dBm, Tracking = -164 dBm
Signal acquisition
Automatic
Differential acquisition
Automatic
Operating voltage range
10.8 V to 31.2 V dc
Power consumption
100 W (Maximum)
Storage temperature
-30 °C (-22 °F) to +70 °C (158 °F)
Operating temperature
-25 °C (-13 °F) to +55 °C (131 °F)
Operating frequency
1574 MHz to 1605 MHz
Nominal supply voltage
12 V / 24 V dc
Update rate
10 Hz
Time to first fix from hot start
< 45 seconds
Time to first fix from cold start
< 2 minutes (< 60 seconds typical)
Position accuracy with SBAS (95%)
< 5m
Position accuracy without SBAS (95%)
< 15m
Speed accuracy (95%)
< 0.3 kt
LEN (NMEA 2000 Load Equivalency Number)
1
Magnetic compass accuracy
Static = ≤ 1° RMS, Dynamic = ≤ 3° RMS
Height (including connectors)
41.6 mm (1.64 in)
AHRS (Attitude Heading Reference Sensor)
3-Axis digital accelerometer, 3-Axis digital compass, 3-Axis MEMS Gyro digital angular rate sensor
Height
26.6 mm (1.05 in)
Width
108.5 mm (4.27 in)
Heading, Pitch, Roll and Rate of Turn update rate
10 Hz
Pitch, Roll and Yaw accuracy
≤ 1°
Weight
6.35 kg (14.0 lbs)
Power input
Class 4 Power over Ethernet (PoE)
Connections
Captive RayNet type SeaTalkhs connector (10/100 Mbits/s)
Cable length
Cable length: 5 m (16.4 ft.)
Camera lens de-icing function
Automatic, 2 mm within 15 minutes @ -10 °C (14 °F)
Operating voltage range (Protected)
8 V to 57 V dc
Operating voltage range (Absolute)
44 V to 57 V dc
Network and cameras
7x RayNet type SeaTalkhs connector (10/100 Mbits/s)
NMEA 2000
3x DeviceNet Micro-C (male connector)
Fuse / breakers
15 A
Current
10 A (nominal)
